Dawson Machine Craft Strata Slimmer Flashlight — Titanium & Black Ceramic

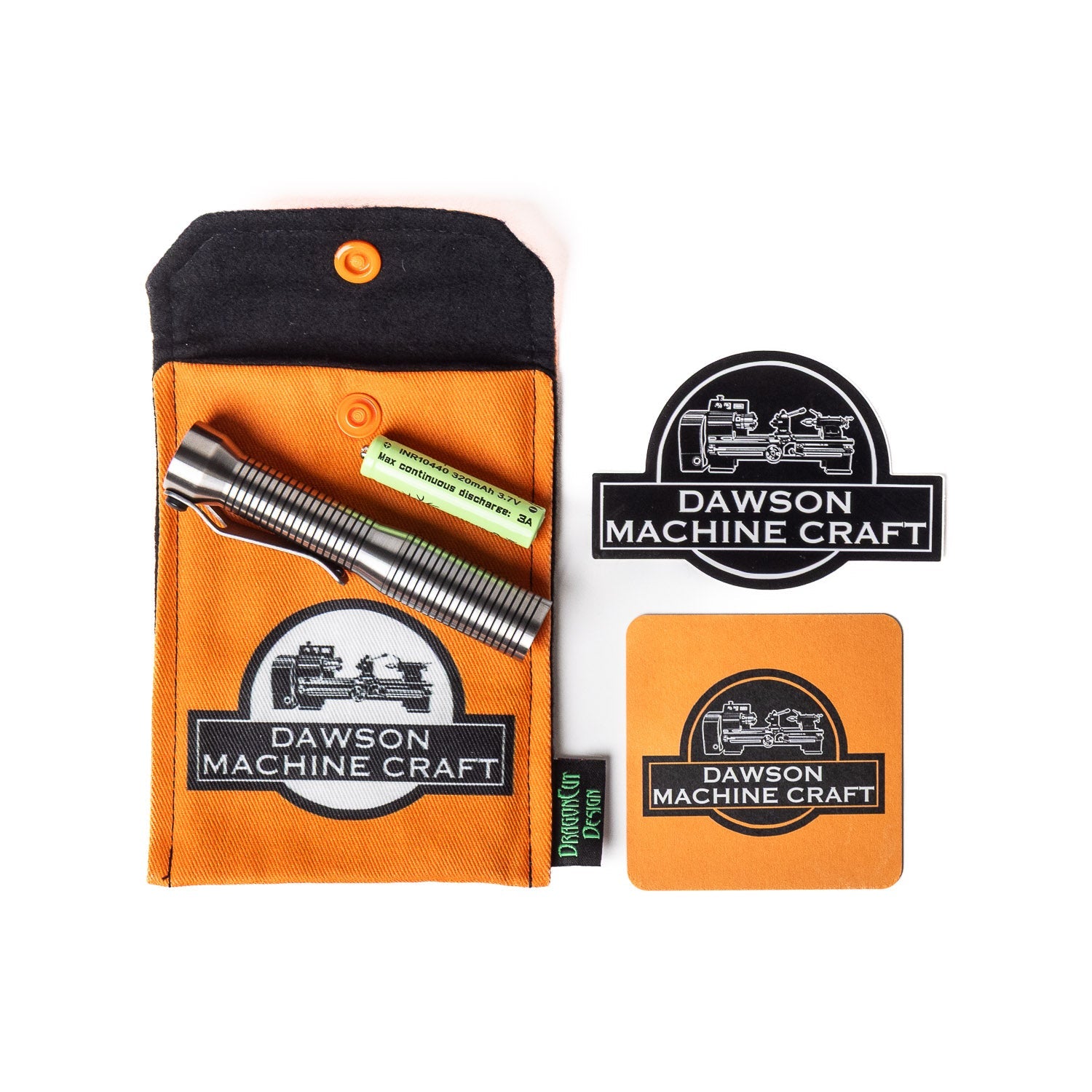

• Divot Slimmer Flashlight
• 1 x 10440 Rechargeable Battery (installed)
• Custom Microfiber Pouch
• Maker Card
• Sticker

A forward click switch (included on the ReyLight Pineapple Mini MKII flashlights) allows you to press halfway for momentary activation and fully click to lock the light on. This is useful for quick bursts of light without fully engaging the switch.

A reverse click switch requires a full press to turn the light on. Once on, you can cycle through modes. It does not support momentary activation.

What’s the main difference between the two?

• Forward Click: Press halfway for momentary light, fully click to stay on.

• Reverse Click: Requires a full click to turn on, no momentary function.

No.

The battery comes pre-installed. In some cases, a small protective disk may be in place to prevent the battery from making contact with the circuit during shipping. Be sure to remove it before first use.

Full Click = Toggles Power

Half Click = Toggles Brightness

To charge the light, you'll need to take the battery out and place it into a 10440 compatible charger (sold separately).

If you need a charger, we suggest this one:

Battery Charger for Dawson Machine Craft Divot Slimmer

Your Divot Slimmer flashlight includes a fully programmable FET driver using guppydrv Rev.1, allowing you to customize brightness levels, memory behavior, and special modes to suit your preferences.

How to Enter Programming Mode:

1. Turn the flashlight on.

2. Perform 8 quick half-presses (soft taps) of the tail switch.

3. After the 8th tap, the light will enter programming mode.

How to Select a Mode Group:

Once in programming mode:

• Half-press the switch the number of times that corresponds to your desired mode group (e.g., 5 taps for Group 5).

• After your taps, wait. The light will blink to confirm your selection and return to normal operation.

Available Mode Groups:

1 – 1% – 25% – 100% | Memory

2 – 1% – 25% – 100% | No Memory

3 – 100% – 25% – 1% | No Memory

4 – 1% – 25% – 100% – Strobe | No Memory

5 – 1% – 25% – 100% – Strobe | Memory

6 – 10% – 100% | Memory

7 – 10% – 100% | No Memory

8 – 100% – 10% | No Memory

9 – 100% | No Memory

10 – 100% – Strobe | No Memory

11 – Strobe – 100% | No Memory

12 – Moonlight – 2% – 25% – 100% | Memory

13 – Moonlight – 2% – 25% – 100% – Strobe – Beacon | No Memory

14 – Moonlight – 100% | No Memory

15 – 100% – Moonlight | No Memory

16 – Moonlight – 100% | Memory

17 – Moonlight – 1% – 5% – 15% – 40% – 100% | Memory

18 – Moonlight – 1% – 5% – 15% – 40% – 100% | No Memory

19 – 100% – 40% – 15% – 5% – 1% – Moonlight | No Memory

20 – 100% – 40% – 15% – 5% – 1% – Moonlight | Memory

21 – 1% – 5% – 15% – 40% – 100% | Memory

22 – 1% – 5% – 15% – 40% – 100% | No Memory

23 – 100% – 40% – 15% – 5% – 1% | No Memory

24 – 100% – 40% – 15% – 5% – 1% | Memory

How to Set the Turbo Timer:

1. Rapidly tap the switch 8 times, the light will then enter the programming mode and begin to flash.

2. With the light in programming mode, tap the switch 30 times to enter the turbo timer set mode. The light will then switch to 100% power.
3. When the light is at the desired temperature for the turbo step down, turn the light off.
4. The turbo timer will then be set.
5. The turbo timer steps the light down to 50% regardless of the mode group set.

Tips:

• “Moonlight” is an ultra-low mode for preserving night vision.

• Memory means the light will remember and return to the last mode used.

• To reset to a basic setup, reprogram to Group 1 (standard 3-mode with memory) or Group 9 (single mode 100%).
