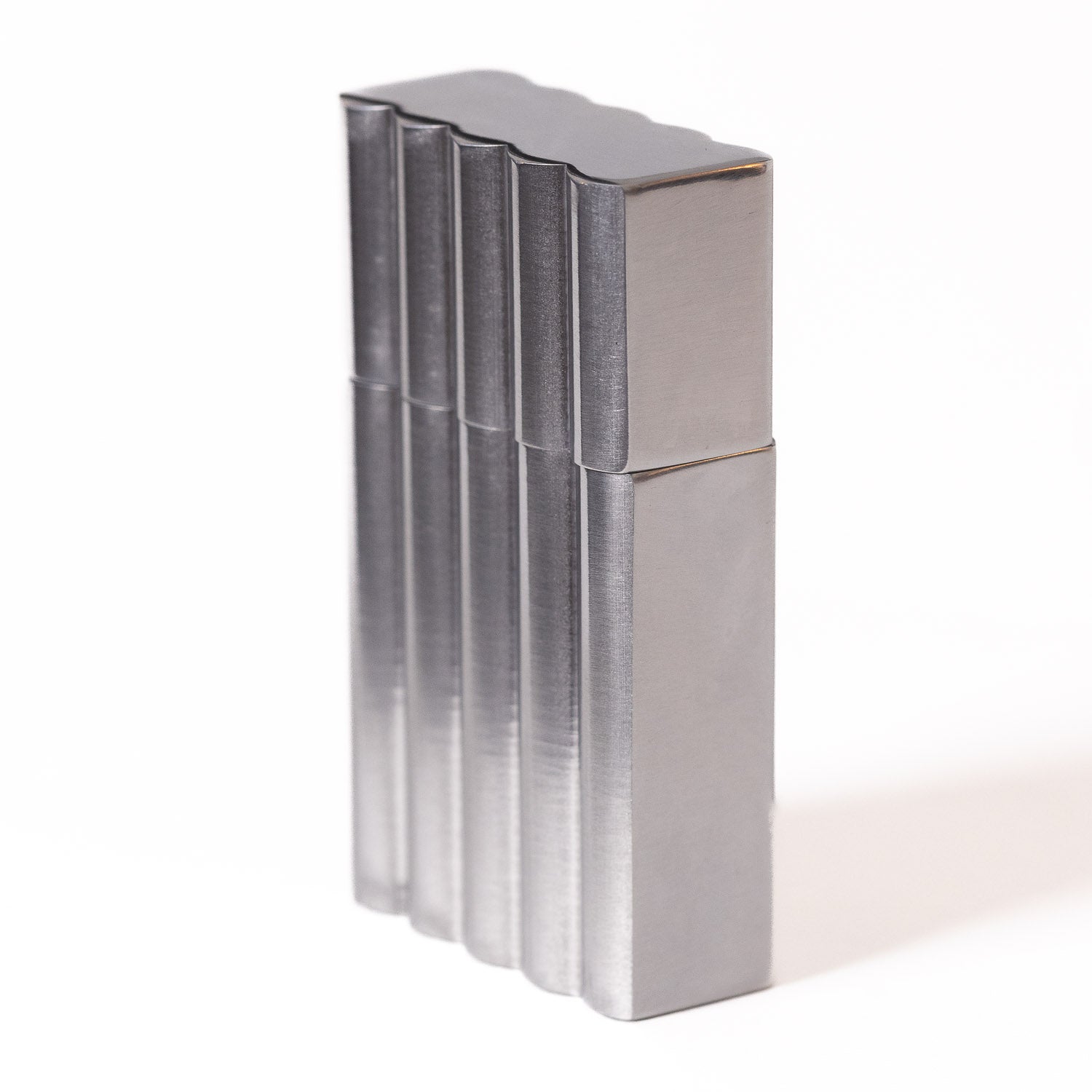

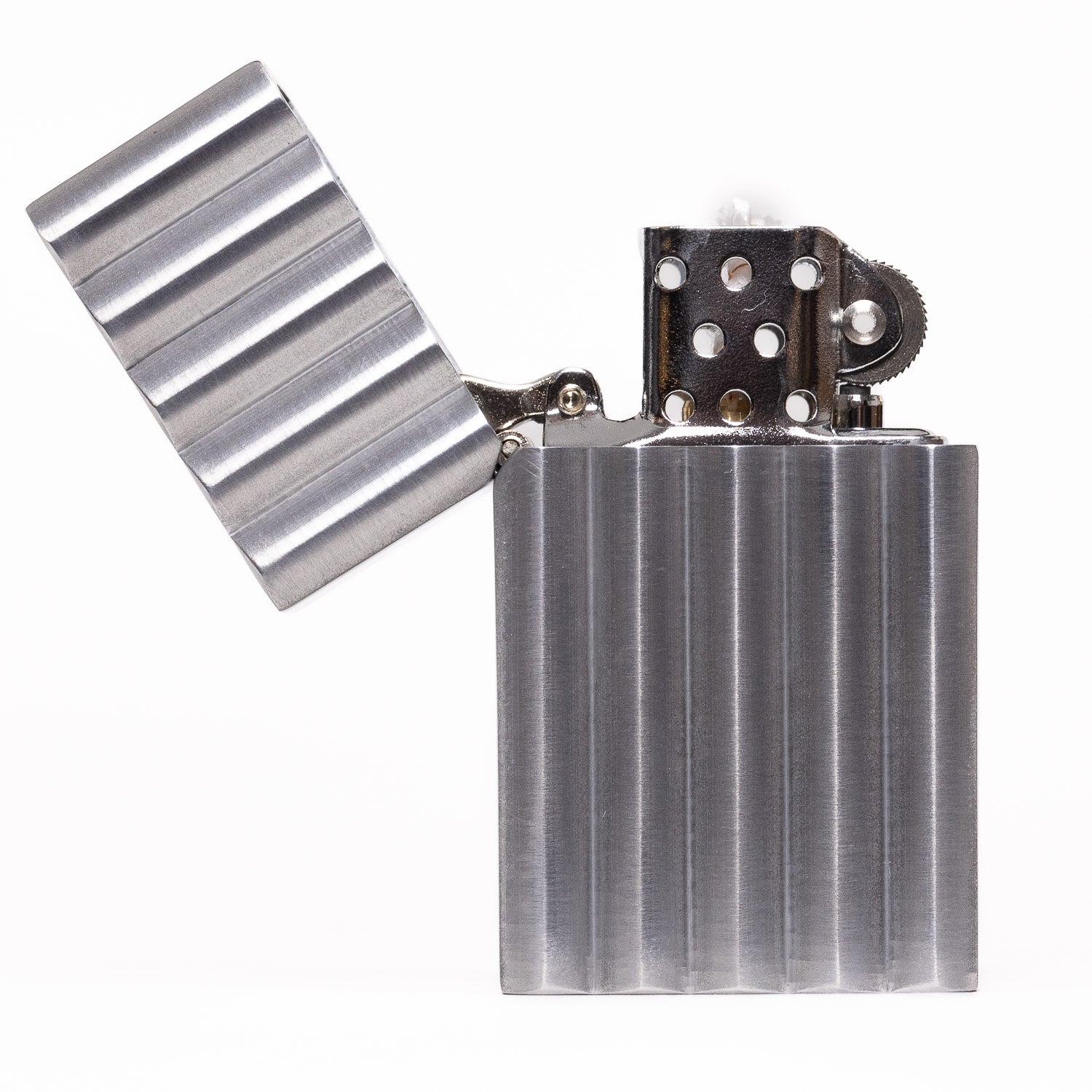

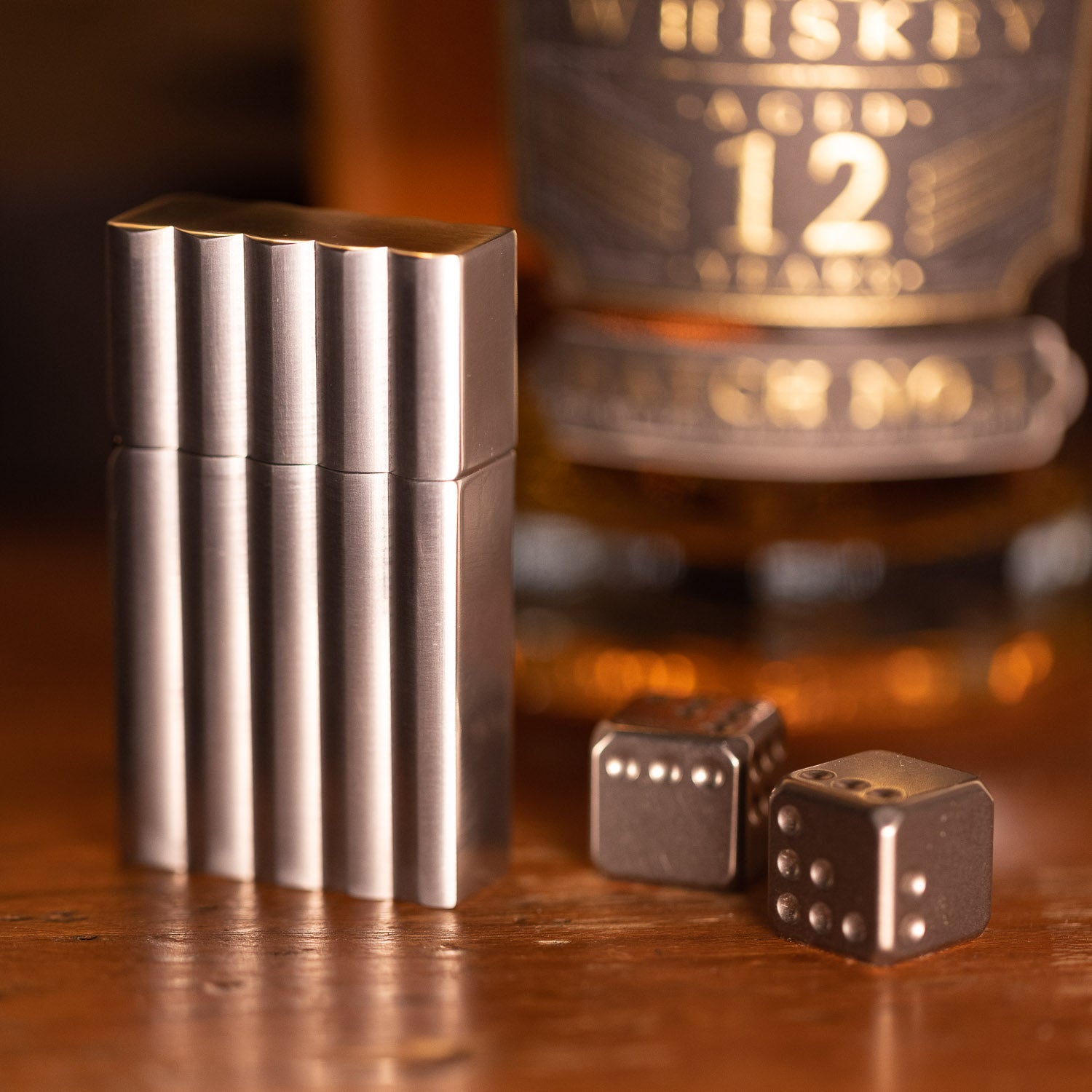

Tsubota Pearl Hard Edge Aluminum Wave Lighter

Before you start:

For best performance, use genuine Tsubota Pearl Hard Edge wicks and the flints recommended for your lighter. Aftermarket wicks can keep the lighter from sealing and drawing fuel properly.

Fuel Refill:

Grab the inner tank and pull it out of the lighter's outer shell.

Slowly drip lighter fluid directly onto the exposed cotton until saturated (do not over soak the cotton).

Reinstall the inner tank into the outer shell.

Allow the lighter to rest upright for about one minute before lighting.

If the lighter sparks but doesn't light, repeat the process by adding more fuel to the cotton and try again.

Lighter Fluid:

For lighter fluid, we personally use Ronsonol.

Flint Replacement:

Locate the small, flat-head screw inside the cotton chamber.

Use a flat-head screw driver to unscrew the spring-loaded flint rod.

Remove any leftover expired flint.

Insert a new im corona flints or Kiribi flint into the opening.

Reinsert the spring-loaded rod and press firmly while using a flat-head screwdriver to tighter the rod into place.

Trimming the Wick:

Trimming the wick is easy and can generally be done with a pair of flat tweezers and a toenail clipper.

Grab the inner tank and pull it out of the lighter's outer shell.

Pinch the end of the wick with the tweezers and pull up.

Cleanly trim the wick with your toenail clipper flush to the top of opening of the lighter.

If you are out of wick, you'll need to purchase a new wick kit and insert the new wick.

With some of our lighters, the wick is held in place by a small, metal prongs. The prongs can be bent away from the wick to allow you to pull the wick up through them. You can then secure the wick by bending the prongs back against the wick.

Replacing the Wick:

Pictured: the Hard Edge Latitude in Clear. The steps are identical for the Aluminum Wave.

Grab the inner tank and pull it out of the lighter's outer shell.

Lift the cotton pad from the side to expose the removable cotton.

Pull the removable cotton out of the lighter.

Insert the replacement wick from the maintenance kit into the top of the lighter, guiding it down through the body until it reaches the bottom. Leave approximately ¼ inch of wick exposed at the top.

Clip the wick leaving roughly 6" to 8" of wick from the top of the lighter through the bottom of the lighter.

Tuck the clipped wick into the bottom of the lighter and gently repack the cotton around the wick to secure it in place. Avoid packing too tightly, as this can restrict fuel flow.

Press the cotton pad firmly down so it is flush with bottom of the lighter and place the inner tank back into the outer shell. The remaining wick from the maintenance kit can be reused at a later date.

Pro Tip:

If the wheel spins without sparks or the flame weakens, it’s typically time for fresh flint, fuel, or a wick trimming.

Like many of the heirloom products we sell, your lighter will need occasional maintenance. In many ways, maintaining our lighters is as fulfilling as owning them. That being said, your lighter will require some basic knowledge of what and how things can go wrong and what to do about each issue if and when they occur.

If your lighter is having any sort of issues lighting, the culprit is generally one of the following issues.

Issue #1: Your lighter is not sparking.

Solution #1: Replace the flint. The process for doing so on these lighters is different from lighter to lighter, but usually there is an area you can unscrew that allows you to add flint to the lighter. Please ask if you need help finding it.

Issue #2: The lighter is sparking and producing a flame, but the flame instantly disappears or the flame is very small regardless of how much you turn up the gas.

Solution #2: More than likely, your lighter does not have enough fluid/gas. Add more. With petrol lighters, the cotton should be saturated, but not sopping wet. Over filling the cotton will result in leakage from the top of the lighter. Over time, you'll learn exactly how much is needed based on how the flame is producing and functioning.

Issue #3: The flame is extremely low or has a hard time lighting even though you have plenty of fuel in the lighter and enough flint to spark a flame.

Solution #3: More than likely, your wick needs to be trimmed. It will appear overly charred, too frayed, or a bit short. Trimming the wick is easy and can generally be done with a pair of tweezers and a toenail clipper. Pinch the end of the wick with the tweezers, pull up, and cleanly trim the wick with your toenail clipper flush to the top of opening of the lighter. If you are out of wick, you'll need to purchase a new wick kit and insert the new wick. With some of our lighters, the wick is held in place by a small, metal prongs. The prongs can be bent away from the wick to allow you to pull the wick up through them. You can then secure the wick by bending the prongs back against the wick.

Issue #4: The lighter appears wet, potentially too drenched in oil to light.

Solution #4: You have most likely overfilled the lighter and drenched the wick. You can either let the wick dry out (recommended) or light the wick with another lighter and burn off the excess gas. Be very careful doing this as sometimes the gas has also drenched the outside of the lighter and the flame can spread down from the wick, lighting the outside of the lighter and potentially burning your hand and/or causing a fire.

If you are struggling with maintaining your lighter in any way, please don't hesitate to reach out to support@lastmanner.com. We love to gab about the maintenance process.
