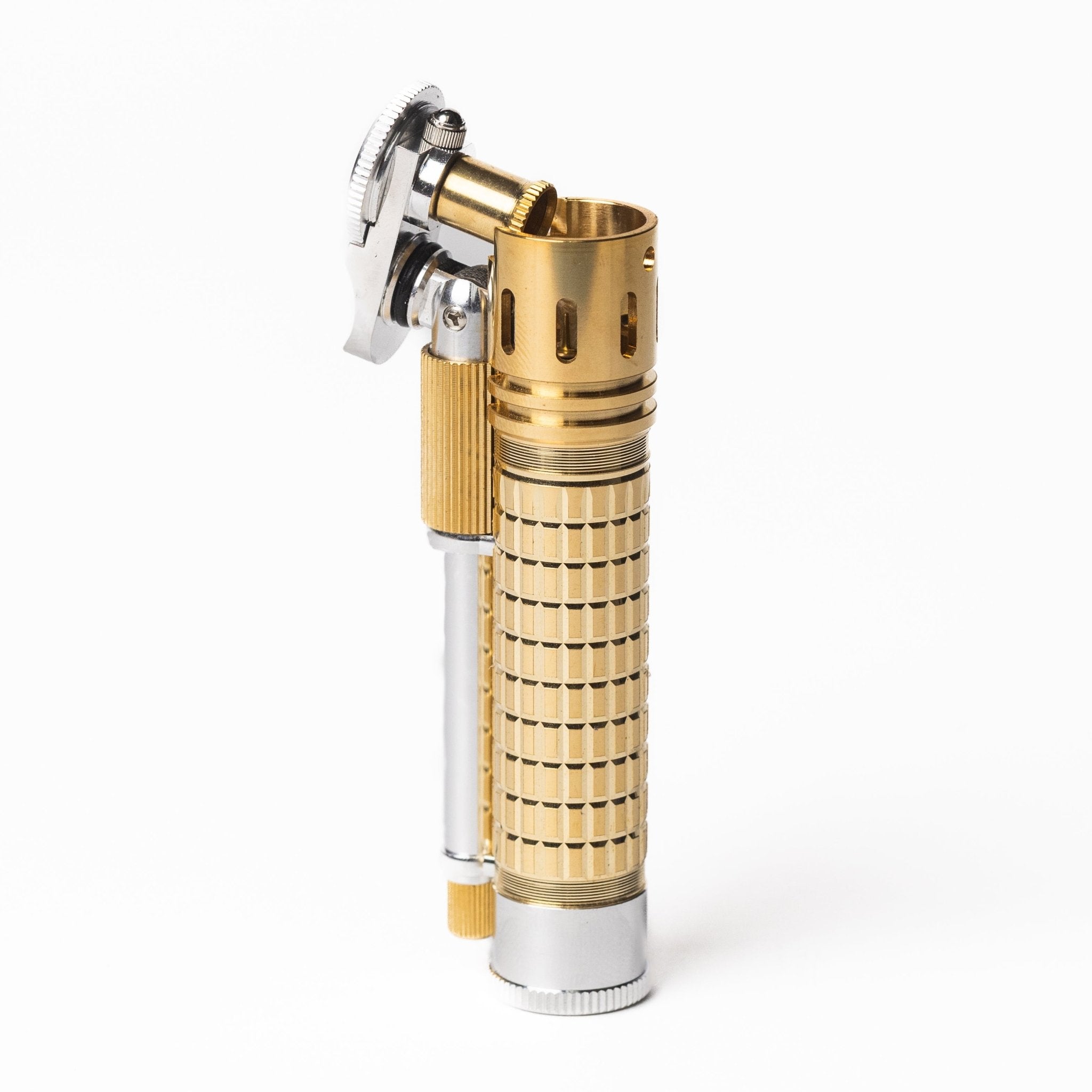

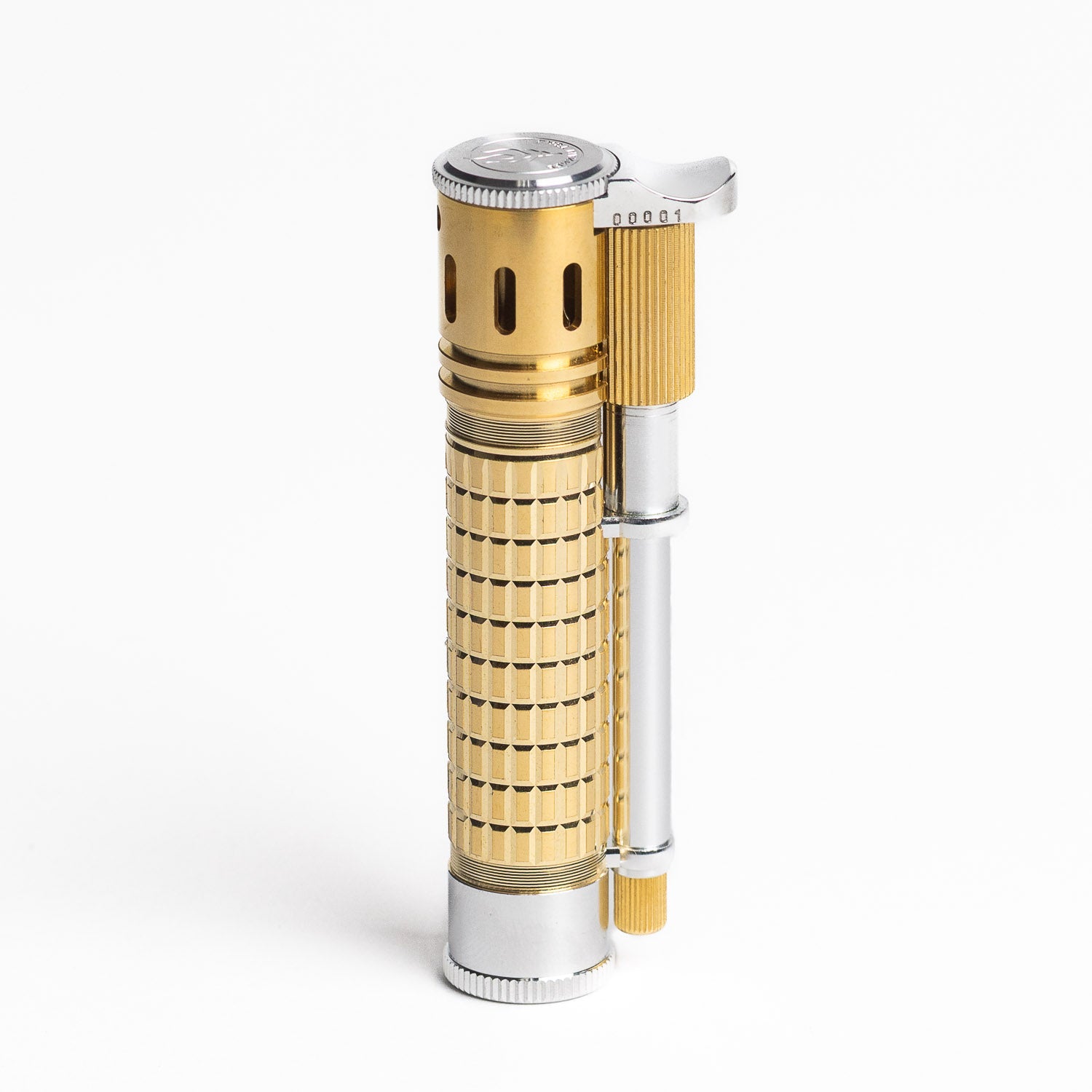

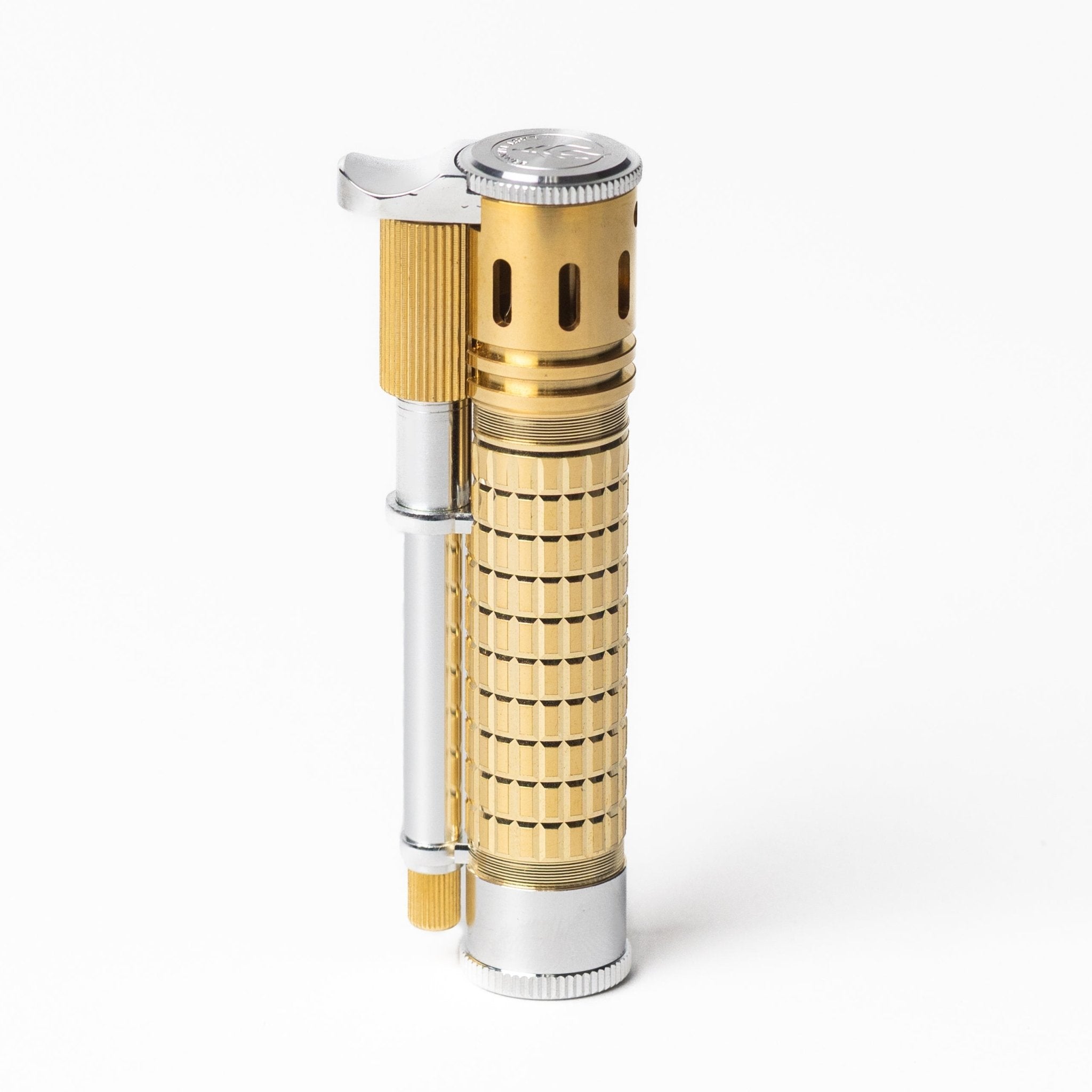

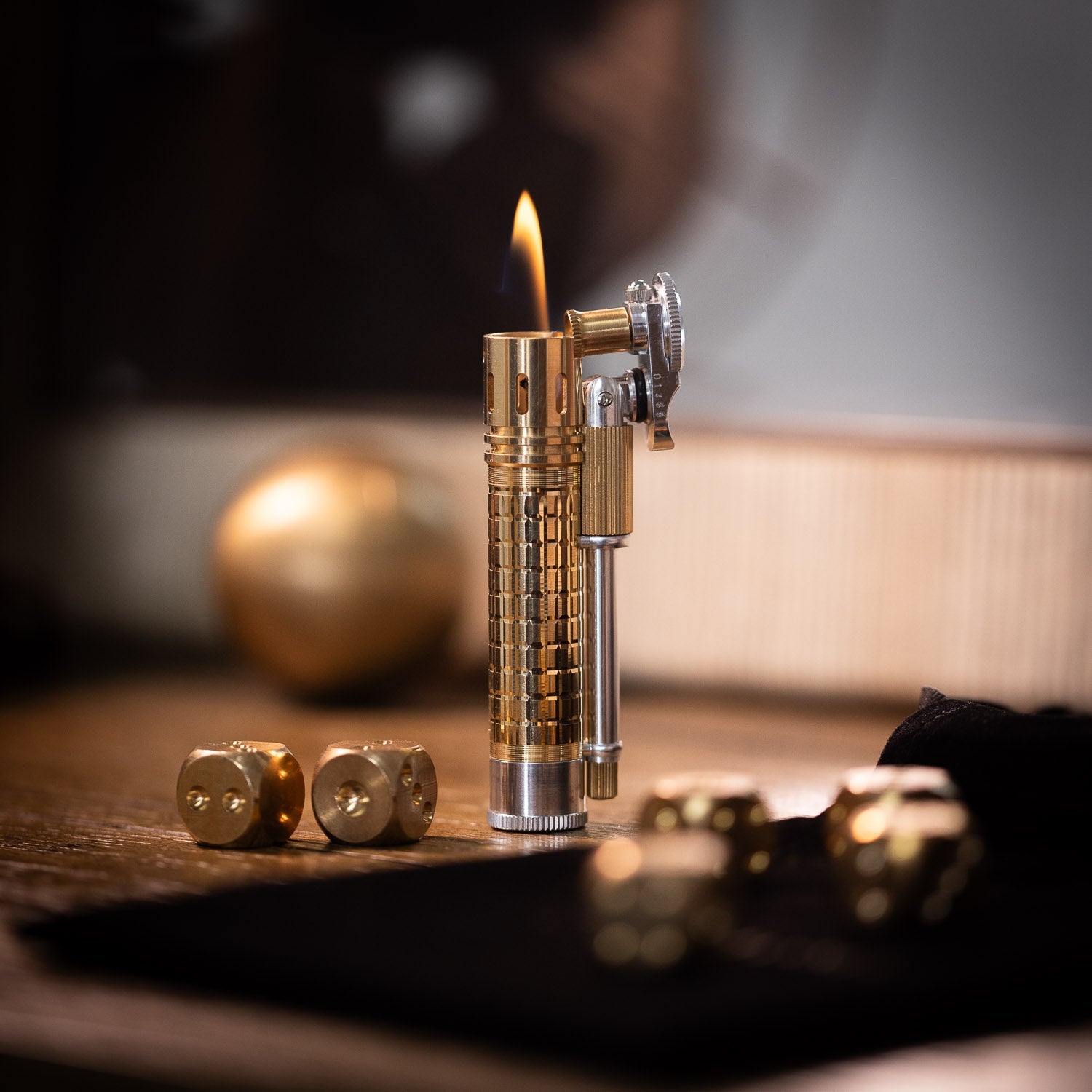

Last Manner x Tokyo Pipe Co. Douglass Field S+ Lighter | Limited Edition

Fuel Refill:

• Locate and unscrew the larger cap on the bottom of the lighter and pull out the oil tank from the barrel of the lighter.


• Unscrew the cap from the oil tank.

• Slowly drip lighter fluid directly onto the exposed cotton until saturated (do not over soak the cotton).

• Reinstall the oil tank bottom cap and insert the entire tank back into the lighter barrel.

• Allow the lighter to rest upright for about one minute before lighting.
• If the lighter sparks but doesn't light, repeat the process by adding more fuel to the cotton and try again.

Lighter Fluid:

For lighter fluid, we personally use Ronsonol.

Flint Replacement:

• Locate and unscrew the larger cap on the bottom of the lighter and pull out the oil tank from the barrel of the lighter.

• Locate and unscrew the spring-loaded flint rod and pull out of the lighter.

• Remove any leftover expired flint.
• Insert a new Douglass flint into the opening.
• Reinsert the spring-loaded rod and press firmly until the screw can be threaded back into the bottom of the lighter.

• Reinstall the oil tank and large cap.

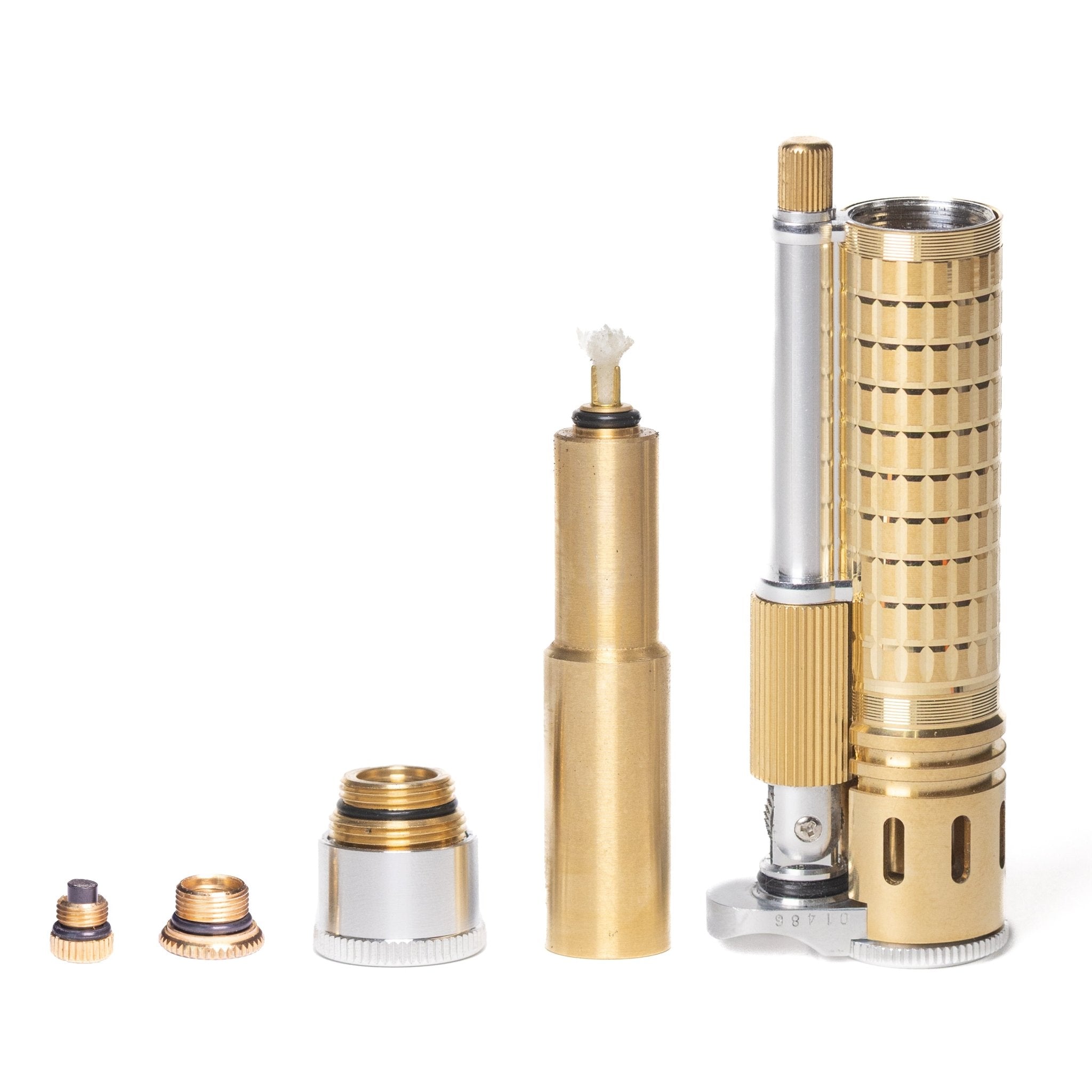

• Don't forget: on the Field S+ model, there is a hidden, spare oil tank and spare flint in the large cap.

Trimming the Wick:

Trimming the wick is easy and can generally be done with a pair of flat tweezers and a toenail clipper.

Pinch the end of the wick with the tweezers, pull up, and cleanly trim the wick with your toenail clipper flush to the top of opening of the lighter.

If you are out of wick, you'll need to purchase a new wick kit and insert the new wick.

With some of our lighters, the wick is held in place by a small, metal prongs. The prongs can be bent away from the wick to allow you to pull the wick up through them. You can then secure the wick by bending the prongs back against the wick.

Replacing the Wick:

Unscrew the oil tank from the lighter barrel.

Unscrew the bottom cap of the oil tank and carefully remove the cotton from inside the lighter.

Insert the replacement wick from the maintenance kit into the top of the lighter, guiding it down through the body until it reaches the bottom. Leave approximately ¼ inch of wick exposed at the top.

Once positioned, gently repack the cotton around the wick to secure it in place. Avoid packing too tightly, as this can restrict fuel flow.

Finish by screwing the bottom cap back on and reinstalling the oil tank into the lighter barrel.

Pro Tip:

If the wheel spins without sparks or the flame weakens, it’s typically time for fresh flint, fuel, or a wick trimming.

Like many of the heirloom products we sell, your lighter will need occasional maintenance. In many ways, maintaining our lighters is as fulfilling as owning them. That being said, your lighter will require some basic knowledge of what and how things can go wrong and what to do about each issue if and when they occur.

If your lighter is having any sort of issues lighting, the culprit is generally one of the following issues.

Issue #1: Your lighter is not sparking.

Solution #1: Replace the flint. The process for doing so on these lighters is different from lighter to lighter, but usually there is an area you can unscrew that allows you to add flint to the lighter. Please ask if you need help finding it.

Issue #2: The lighter is sparking and producing a flame, but the flame instantly disappears or the flame is very small regardless of how much you turn up the gas.

Solution #2: More than likely, your lighter does not have enough fluid/gas. Add more. With petrol lighters, the cotton should be saturated, but not sopping wet. Over filling the cotton will result in leakage from the top of the lighter. Over time, you'll learn exactly how much is needed based on how the flame is producing and functioning.

Issue #3: The flame is extremely low or has a hard time lighting even though you have plenty of fuel in the lighter and enough flint to spark a flame.

Solution #3: More than likely, your wick needs to be trimmed. It will appear overly charred, too frayed, or a bit short. Trimming the wick is easy and can generally be done with a pair of tweezers and a toenail clipper. Pinch the end of the wick with the tweezers, pull up, and cleanly trim the wick with your toenail clipper flush to the top of opening of the lighter. If you are out of wick, you'll need to purchase a new wick kit and insert the new wick. With some of our lighters, the wick is held in place by a small, metal prongs. The prongs can be bent away from the wick to allow you to pull the wick up through them. You can then secure the wick by bending the prongs back against the wick.

Issue #4: The lighter appears wet, potentially too drenched in oil to light.

Solution #4: You have most likely overfilled the lighter and drenched the wick. You can either let the wick dry out (recommended) or light the wick with another lighter and burn off the excess gas. Be very careful doing this as sometimes the gas has also drenched the outside of the lighter and the flame can spread down from the wick, lighting the outside of the lighter and potentially burning your hand and/or causing a fire.

If you are struggling with maintaining your lighter in any way, please don't hesitate to reach out to support@lastmanner.com. We love to gab about the maintenance process.

In 1926, an American oil lighter known as the Douglass lighter made its debut. It cost a whopping five dollars (most lighters of the time only cost 69 cents) and was known for being made with a high degree of skill and quality.  While the original Douglass went extinct long ago, the Tokyo Pipe Co. brought the style back to life in 1993 through exceptional craftsmanship and a profound attention to detail.

Founded in 1946, the Tokyo Pipe Co. has been manufacturing smoking products for over 75 years. In 1993, the company re-manufactured the once extinct 1920's "Douglass" American oil lighter. Handcrafted by expert craftsmen in Japan, the lighters have become a staple of the company, as well as some of the most unique, durable, and gorgeous lighters on the market.
